Mitsubishi Electric’s Pune factory

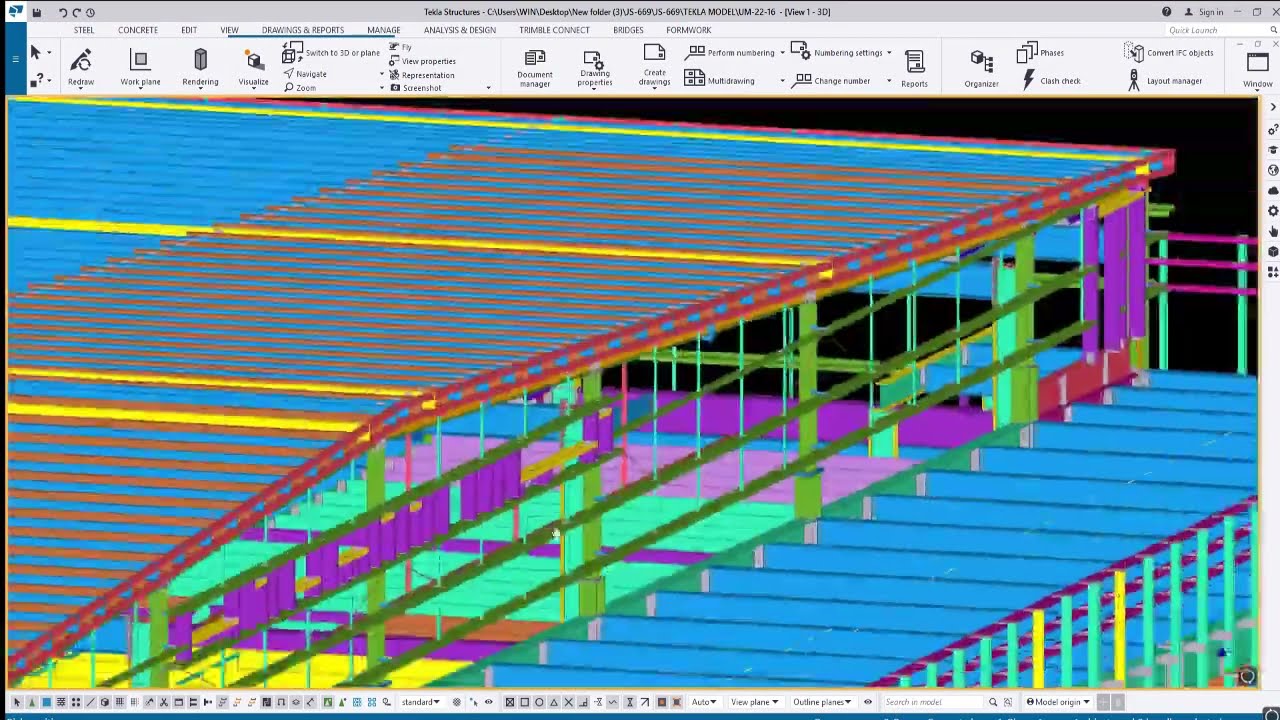

Smith Structure India used Tekla Structures to design Mitsubishi Electric's Pune factory plant.

About the project

Project category

Industrial Projects

Company

Smith Structure India Pvt. Ltd.

Location

Pune, India

Images

placeholder imageplay button

Project video

Project in numbers

Total Weight

1000 tonnes

Trimble products used

Tekla Structures

About the project

The scope of work included building a G+1 structure with change in slab level at multiple locations, sunken slab, PEB shed with multiple eave height (high bay/low bay), lift structure (3 nos.), AHU supporting structure, pipe racks with screwed geometry, PIR panel façade supporting structure, multilevel false ceiling structure, solar supporting structure with walkable platform above canopy and staircase.

Challenges

The team faced problems while changing PEB members as other secondary connections were getting affected.

Benefits of using Tekla

Tekla Structures helped the team to deliver heavy fabrication work in the PEB lift structure (complete site bolted) pipe rack, facade structure design and multilevel false ceiling structure. Further, Tekla Structures was used for the detailing purpose.

Tekla BIM Awards

The Tekla BIM Awards honor projects that transform the way the world builds.

See all projects

The Content on this page is provided to Trimble Solutions Corporation ("Trimble") under the Tekla BIM Awards Terms and Conditions.
