DRI Plant Project

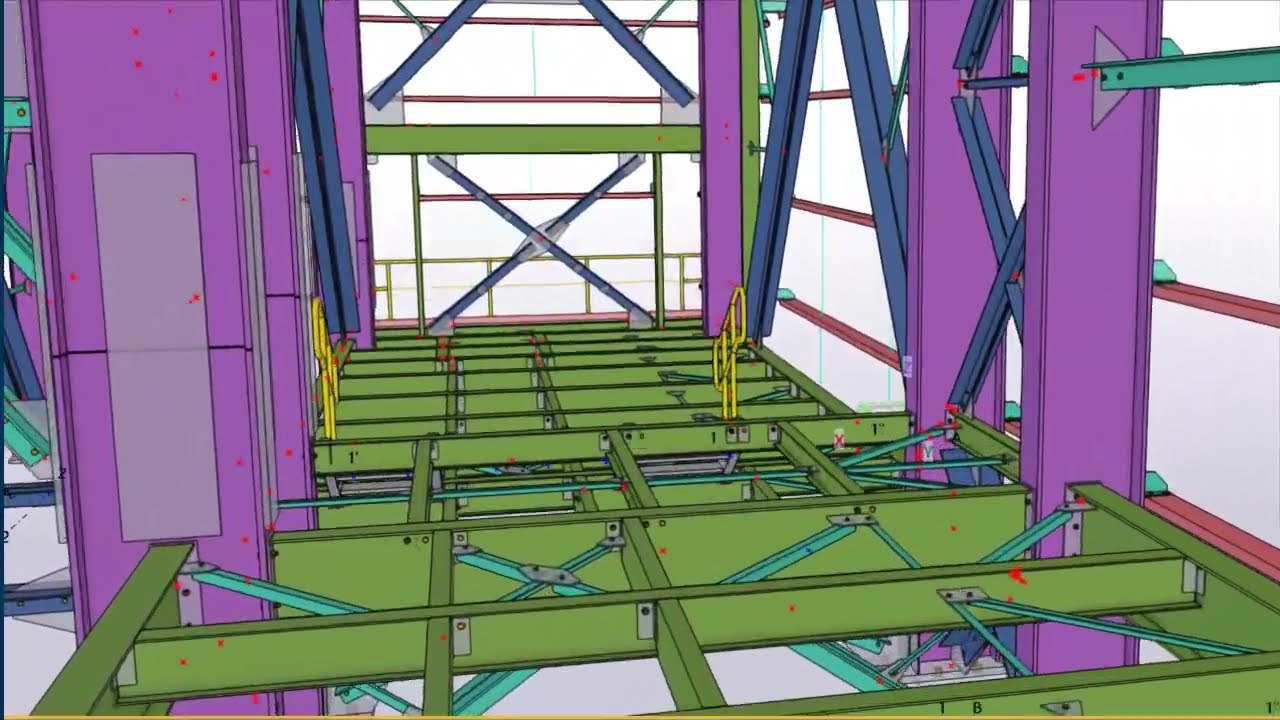

This project located in Uzbekistan is a vibrating screen junction tower.

About the project

Project category

Industrial Projects

Company

Meinhardt EPCM (India) Private Limited

Location

Uzbekistan

Images

placeholder imageplay button

Project video

Project in numbers

Steel weight

265 tonnes

Drawing stru.G.A

23 number

Paper drawings used

Assembly drawing 1000 +

Trimble products used

Tekla Structures

About the project

This is a vibrating screen junction tower weighing about 270 tons and the number of drawings generated were over 1000.

Challenges

Apart from the complexities of the project, the project timeline was the biggest challenge. In addition, drawing design and fabrication drawings in parallel was another big task.

Benefits of using Tekla

  • Member changes and other errors in the drawing were automatically updated on Tekla Structures. For example, the team could deliver a last minute change in member column size of 300 to 600 mm with the help of Tekla Structures. They could make changes to all the sections and release drawing within the stipulated timeline.
  • Generating models and clash detections on Tekla Structures is super quick.
  • Further, producing similar drawings were equally easy with the cloning feature.
  • The project team affirms that the project could be delivered within the timeline because of Tekla Structures. A CAD software would have taken more time for connection, detailing, prepare GA and for checking of all fabrication drawings. The team stated that Tekla is more convenient and suitable for preparation of steel structural shop drawings.

Tekla BIM Awards

The Tekla BIM Awards honor projects that transform the way the world builds.

See all projects
