Cycling footbridge over the R1, Tekla Global BIM Awards 2024

An urban cycling route connecting the western and eastern parts of the Radvaň district.

About the project

Project category

Infrastructure

Company

STAT-KON, s.r.o.

Location

Slovakia

Images

placeholder imageplay button

Project in numbers

Spans of the footbridge

13,060 + 24,686 + 22,899 +76,300 + 22,264 + 24,686 + 13,060 m

Trimble products used

Tekla Structures

Cycling footbridge over the R1

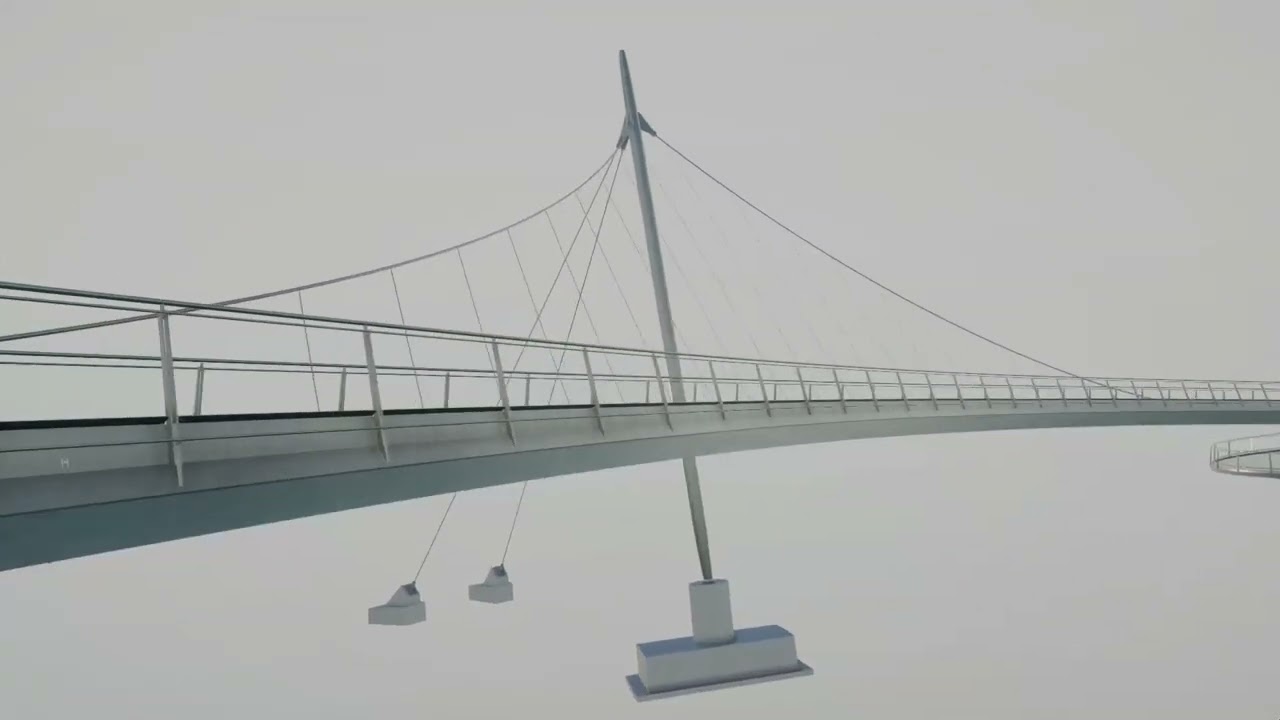

The project consists of an urban cycling route, Hušták-Kráľová, where branch B (Cycling footbridge over the R1) is situated in the city district of Banská Bystrica – Radvaň. Branch B, with the main object of the cycle bridge over the R1, serves as a connection between the western and eastern parts of the Radvaň district. The footbridge is designed as a suspension bridge with one inclined pylon and with suspender cables placed along the outer edge of the main span. The spans of the footbridge are 13,060 + 24,686 + 22,899 +76,300 + 22,264 + 24,686 + 13,060 m (measured in the axis of the footbridge). The transverse section consists of a steel two-chamber structure with a height of 0.75 m. The substructure consists of two abutments, two anchor blocks of stabilizing cables and foundations under one pylon and six pillars. The foundation of the footbridge is designed to be deep on drilled piles of profile 620 mm and 1500 mm and is supplemented by permanent ground anchors on anchor blocks. A complete workshop documentation of steel structures, excluding ropes was made in the company Stat-kon s.r.o.
