New Visitor's Center & Plaza - Sheikh Zayed Grand Mosque

About the project

Project category

Public projects

Company / Project parties

Affan Innovative Structures LLC

Location

United Arab Emirates

Images

placeholder imageplay button

New Visitor's Center & Plaza - Sheikh Zayed Grand Mosque

THE PROJECT

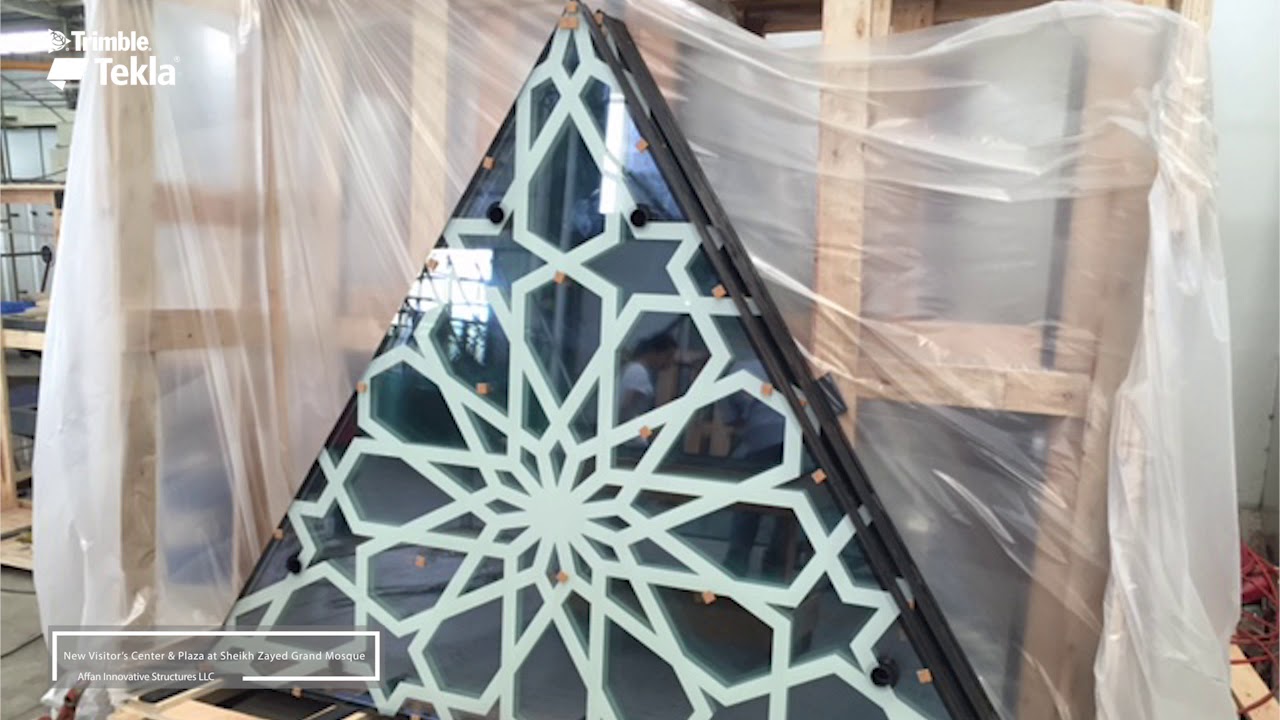

The New Visitor centers are 2nos. of Dome made of Glass & steel to provide Access to Sheikh Zayed Grand Mosque as General & VIP Entrance. The project started at October-2015 and scheduled to end by May-2016. Affan scope of work to design, fabrication, delivery, and installation of the complete steel, glass & Aluminum composite Panel structure forming the 2 No. domes to the New Visitors Center. The project is mainly Grid shell structure with light steel framing, use of rootlet & customized spider to support glass with special frit pattern [Double glazed Units]



CHALLENGES AND SUCCESS FACTORS

The biggest challenge we had that is to produced Steel node [made of 200~300mm diameter steel pipe with the thickness of 30~40mm] for machining with proper coordination with a site to control dome geometry.



BENEFITS / BIM, TEKLA SOFTWARE, AND TRIMBLE

With Tekla structure, we prepare production drawings with all machining details & export reference geometry lines to prepare macro based IGES file for DMG machine with help of CATIA software. which is very successful when we overlay IGES file back to Tekla Model to check for production.





ABOUT THE COMPANY

Since the founding of the company by Dr. Amer Affan in 2004 in Dubai, UAE, Affan has established itself as one of the market leaders in steel and glass structures. Innovation is the company’s mantra and in 2009, the company turned to advanced structural composites as a material of the future. As architects look to push the boundaries of what can be designed so Affan has developed its technology to follow suit. Using technical know-how developed by companies such as CFK Valley, Affan has become one of the leading companies in the GCC able to design, supply, fabricate, and install advanced structural composite solutions.



PRIMARY ROLE IN THIS PROJECT

Structural design - architectural driven project



Using technical know-how developed by companies such as CFK Valley, Affan has become one of the leading companies in the GCC able to design, supply, fabricate, and install advanced structural composite solutions.
