Dubai Arena

Winner icon
Sports & Recreation Project - Winner

About the project

Project category

Sports & Recreation projects

Company / Project parties

Al Shafar Steel Engineering (ASSENT) LLC

Location

United Arab Emirates

Images

placeholder imageplay button

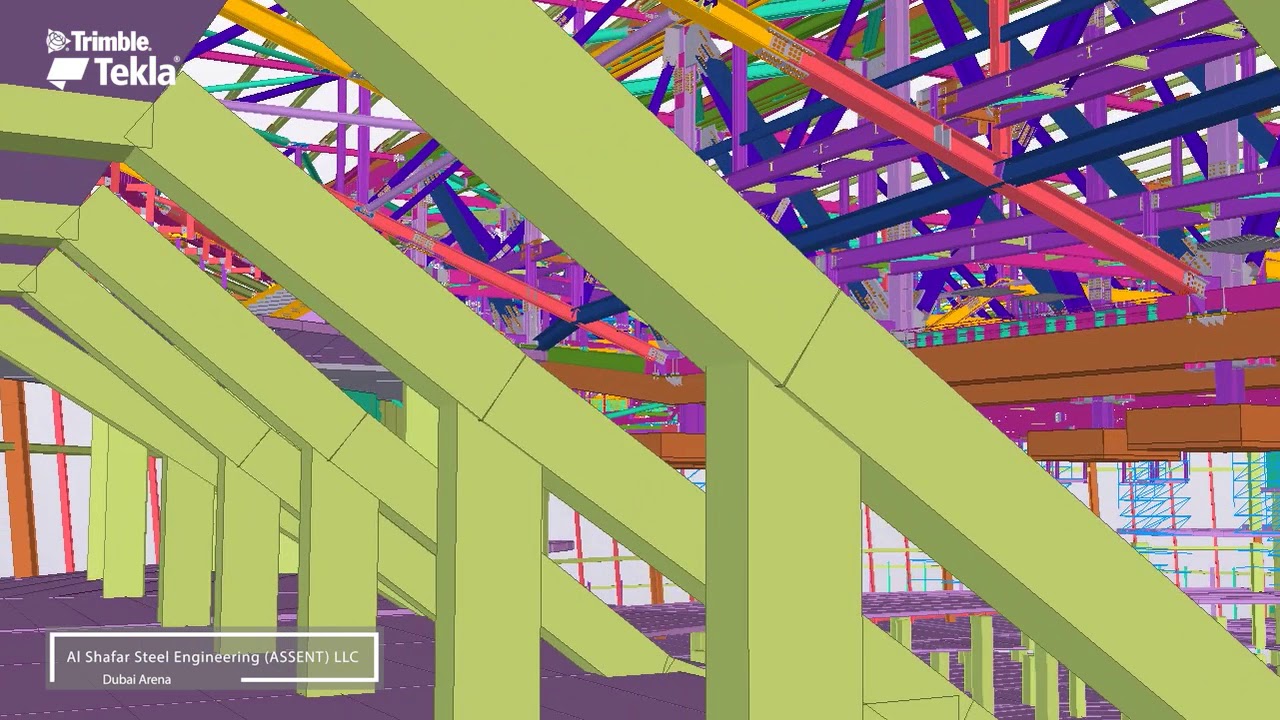

Dubai Arena

THE SCOPE

ASSENTS scope of work to provide Connection Design, Fabrication and Installation of Structural Steel for Roof Structure & Façade Supports. In addition, the scope also includes the design, supply & fixing of pot bearings. The Steel Structure is protected with intumescent fireproofing.

THE PROJECT

Dubai Arena at City Walk is a new, state-of-the-art multi-purpose arena spanning an area of half-a-million square feet with an approximate capacity of 20,000. Dubai Arena is set to enhance Dubai’s leisure and entertainment offering and become the ‘go to’ venue for large-scale international music concerts and sporting events. Dubai Arena will be the only all-purpose indoor air-conditioned arena of its size in the entire region and will boast an advanced infrastructure allowing it to accommodate mega-events.

CHALLENGE AND SUCCESS FACTORS

The Roof Structure has had oversized Steel Trusses were transported by means of Dolly Trucks from the Factory to site as several parts and assembled at the site as per the project specification by using trained and certified welders and fabrications team by ASSENT.

Self-propelled modular transporter (SPMT’s) were used for Super Truss Maneuvering and kicker bracing has been used to reduce the buckling length.

Supper Trusses spans 120m & weighs 800 T each has been lifted & erected as a single lift from outside of the arena by using 1,600 T & 1,400 T capacity of crawler cranes simultaneously.

ABOUT AL SHAFAR STEEL ENGINEERING (ASSENT)

Al Shafar Steel Engineering (ASSENT) LLC is one of the largest Steel Fabrication and Erection Company supported by large engineering services established in 2008 to serve the requirements of industrial and commercial projects, focusing on high-quality level and supported by large capacity as to serve the high global demand for steel products.

ASSENT manufacturing facility is located at Dubai Industrial Park - UAE, having production capacity up to 120,000 ton/year.

ASSENT capabilities & resources can serve and support clients as a strong partner for any type (Airports, Bridges, Power plants, high-rise building, Showrooms, Terminal Buildings, Factories, Car parks….) of Commercial and industrial projects, by providing vast services as follows:

• Engineering Design & Detailing.
• Fabrication.
• Painting & Fireproofing.
• Erection.
