AL ZAHIA CITY CENTRE SHARJA

About the project

Project category

Infrastructure

Company / Project parties

Galadari Engineering Works Co.LLC

Location

United Arab Emirates

Images

placeholder imageplay button

AL ZAHIA CITY CENTRE SHARJA

PROJECT

The project is a new City Centre for Majid Al Futtaim in Sharja with a 3, 80, 000m² covered area, which will be constructed in the emirate of Sharjah, UAE. The project’s site is located on the north-east corner of the intersection of Sheikh Mohammed Bin Zayed & the University Road. The mall will accommodate between its walls several key anchor & flagship stores, restaurants, and public entertainment facilities. The scheme includes a hotel and serviced apartment connected to the mall.

The project’s sustainability goal is to design a sustainable project that will comply with the LEED system’s requirements; which has achieved “GOLD” rating certification level. The project’s sustainability objectives stem from the client’s Corporate Sustainability Policy, which represents their business culture and commitment towards creating sustainable development in the emirate of Sharjah. The same values that we uphold in Khatib and Alami design and business practices. The project design considered energy efficiency and outdoor/indoor comfort levels for future occupants, with both passive and active design measures, optimized natural daylight consideration in the concourse areas, very high water conservation and recycling targets, as well as very efficient energy utilization and other quantifiable sustainability targets, which are incorporated as part of the project’s sustainability KPI’s.

The project is expected to open for the public in Early 2020.

Galadari Engineering is responsible for Design, Detailing, Fabrication, and Erection of Entrance Canopy which consists of 1,200Ton of Steel with 140meter length and 46meter width. The Wave Shape of Canopy roof makes it different from traditional Canopy designs and makes its look more appealing. In addition to that, the canopy roof is supported with columns like tree branches. It has enhanced the attractiveness of the entire mall.

CHALLENGE AND SUCCESS

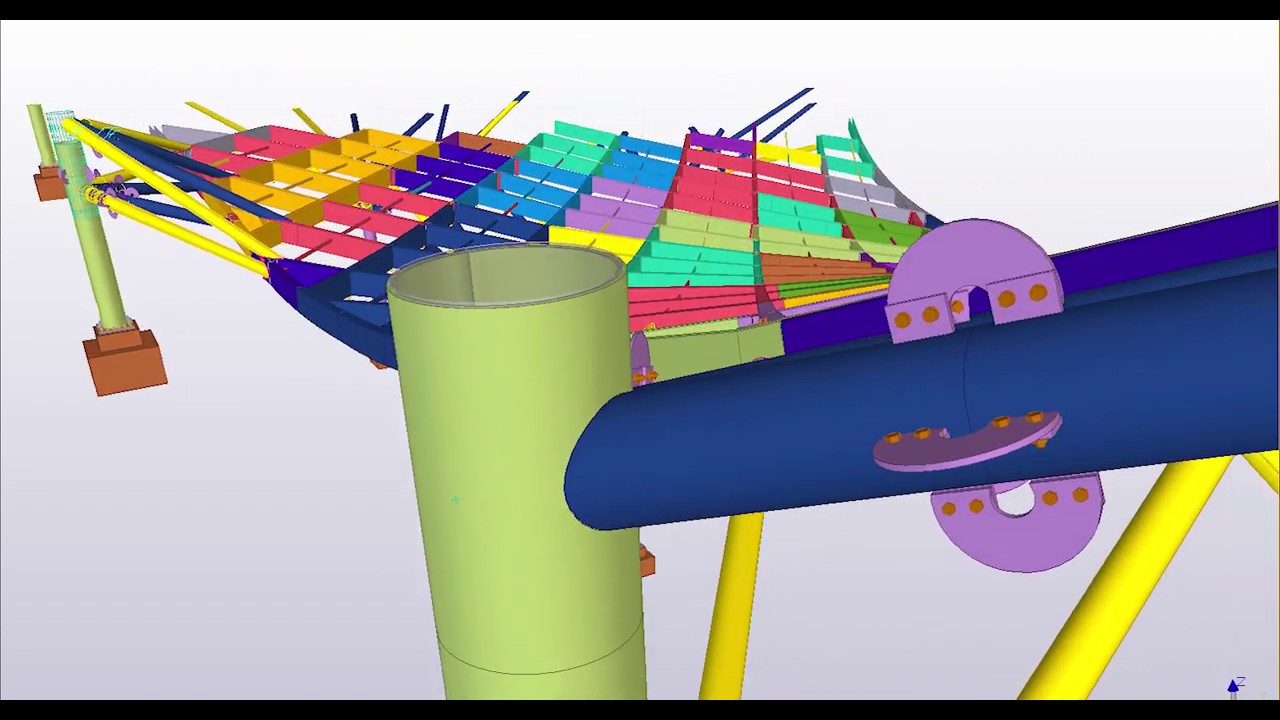

The Sharjah City Centre Canopy had a very different design. It has columns with branches and sub-branches of pipes with reducing the radius. The branch pipes in itself consisted of a unique methodology of design and fabrication as the radios throughout from top to bottom was different and continuously changing.

Talking about the roof of the canopy that was also a complex structure as it required a unique design to maintain its wave shape. The canopy roof is arresting on Column Branches. The roof is of box sections of 600*200*12 size. The shape of the Canopy roof is continuously changing.

WHY TEKLA

Considering the complex geometry, nature and precise interface requirements with various trades, The BIM Implementation with Tekla and the coordination played a vital role in the successful completion of this project.

ABOUT COMPANY

Galadari Engineering Works (GEW) is an allied venture of Galadari Brothers Group, one of the renowned business conglomerates in U.A.E. With over 5 decades of excellence in service in UAE, Galadari Engineering Works has played its part in meeting the needs of the economic and industrial development of UAE. And is the first company in the U.A.E. to implement the QA program as per ISO 9001 with the certification of M/s Germanischr Lloyd’s since January 1993.

The Company has the required capability to undertake large scale construction works. GEW takes pride in its noteworthy contribution towards the construction of modern Dubai that includes the world-famous luxury hotel resort - Atlantis, The Palm, The Presidential Palace, and The Dubai Tram.

Accredited with ISO 9001 since 1993, GEW’s various quality control and procedural systems are streamlined and conform to the stringent quality requirements laid down by the ISO towards meeting the statutory requirements of various Governmental organizations in UAE.

GEW professionals possess the required competency in the field of structural steelwork. The Company houses both the Structural Steel Division and Machine Shop.
